ZM1185B

Die ZM1185B (Äquivalent: GR-1420) vom deutschen Hersteller Siemens gehört zur 15.5mm-Kopffüßler-Sonderzeichen-Reihe, der auch die ZM1185A, ZM1185D, ZM1185E und ZM1185F angehören:

Die ZM1185B im Größenvergleich

Hier ist die ZM1185B im Ruhezustand zu sehen:

Die ZM1185B im RuhezustandDie ZM1185B im Ruhezustand

Die ZM1185B im RuhezustandDie ZM1185B im Ruhezustand

Die ZM1185B ist eine Sonderzeichenröhre, die vermutlich in Aufzügen eingesetzt wurde. Sie kann sowohl die Zahlen 1-8 anzeigen, als auch die Stockwerkskürzel E (Erdgeschoss) und K (Keller).

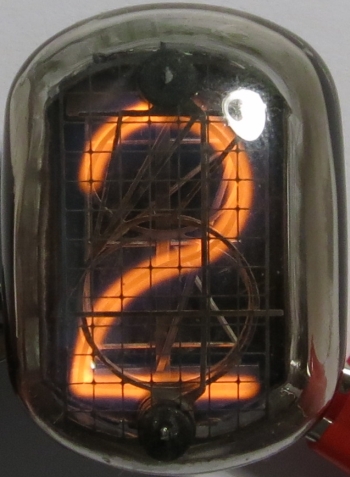

Die Ziffer 1Die Ziffer 2

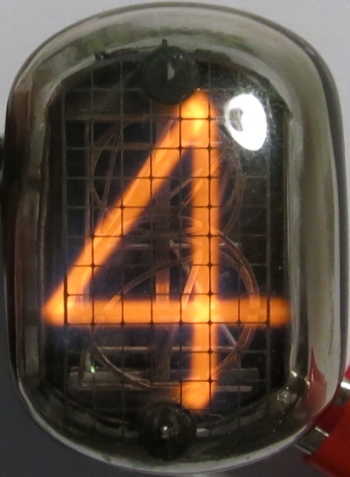

Die Ziffer 3Die Ziffer 4

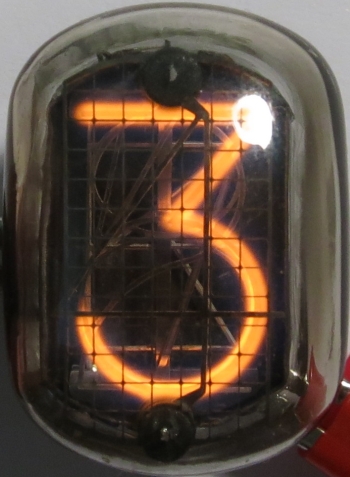

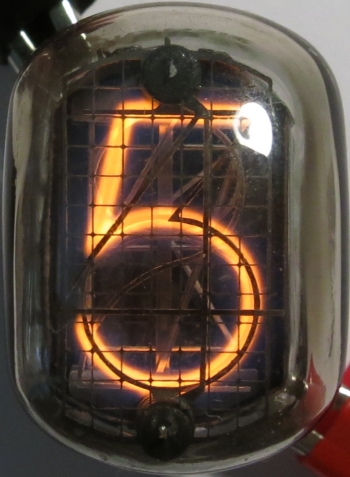

Die Ziffer 5Die Ziffer 6

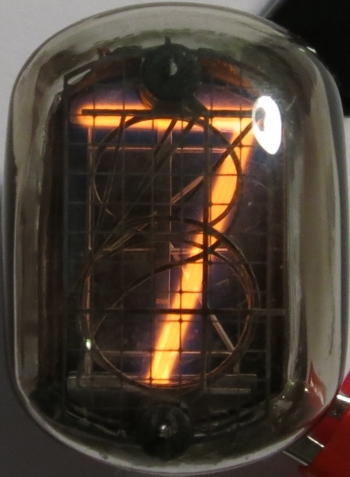

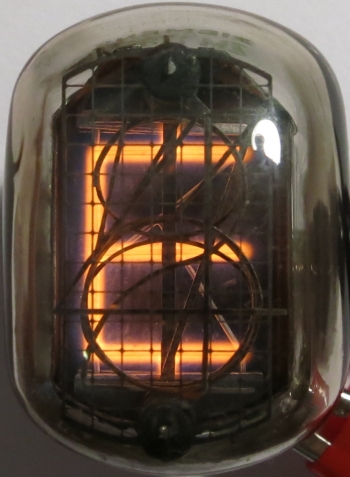

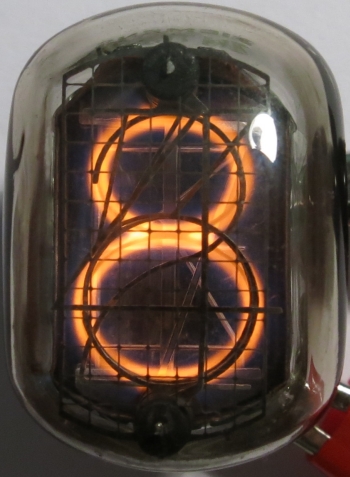

Die Ziffer 7Die Ziffer 8

Das Symbol 'E'Das Symbol 'K'

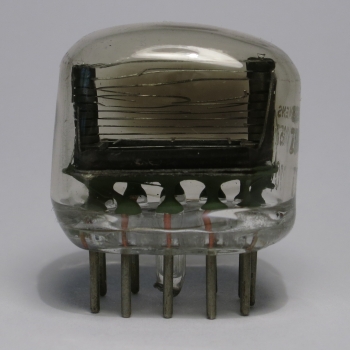

Die ZM1185B ist übrigens eng verwandt mit der ZM1185A. Hier ist das Leuchtbild der ZM1185B von der Seite aus zu sehen:

Das Leuchtbild der ZM1185A von der Seite aus

Leider besitze ich kein Datenblatt zur ZM1185B. Sollte jemand im Besitz dieses Datenblattes sein, würde ich mich über eine Mail diesbezüglich sehr freuen.

Achtung! Die ZM1185C fehlt noch in der Reihe. Besitzen Sie diese, oder kennen Sie eine Quelle für diese interessante Röhre? Schreiben Sie mir doch eine Email, ich würde mich freuen! Achtung!
