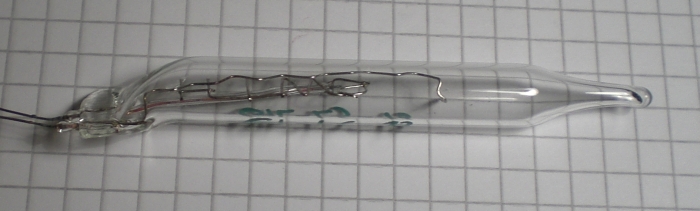

Das Glow Lamp Lab Sample 13, oder kurz GL-LS-13, ist eine von mehreren Schriftzug-Glimmlampen. Sie besteht aus 9mm-Kalknatron-Glasrohr, Dumet-Draht für das Quetschsiegel, und Edelstahldraht für die Kathoden. Sie sollte mit Luft bei 15mbar gefüllt werden:

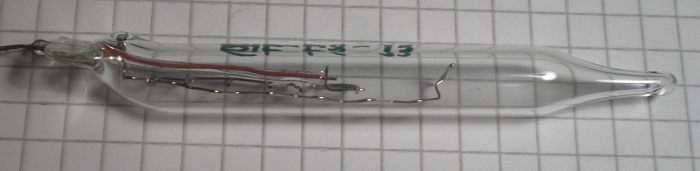

Wie ihre Vorgängerin GL-LS-10 zeigt sie den Schriftzug "RWTH" an; leider ist sie aufgrund eines nicht reparablen internen Kurzschlusses zwischen Anode und Kathode (dem Buchstaben "H") unbrauchbar:

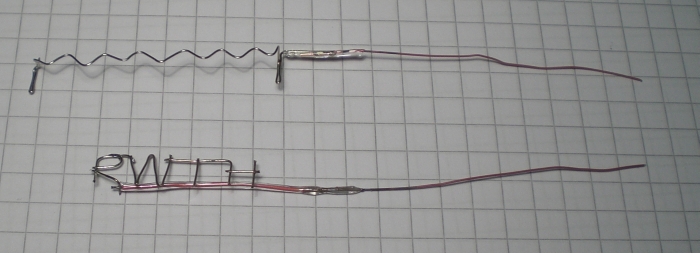

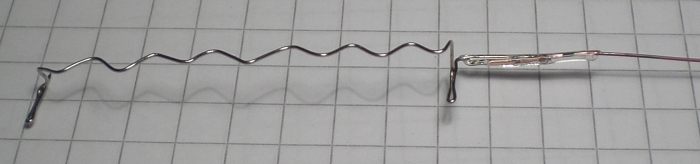

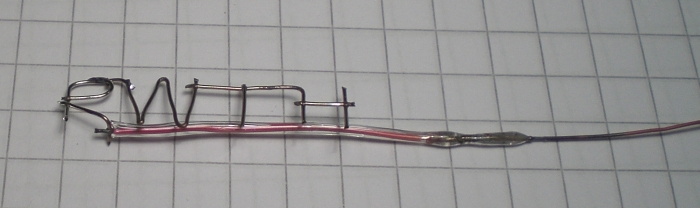

Die interne Konstruktion ist jedoch besser gelungen als bei der GL-LS-10:

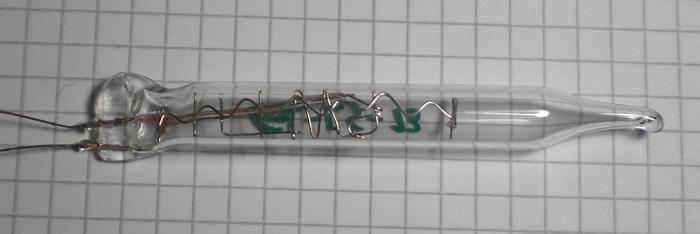

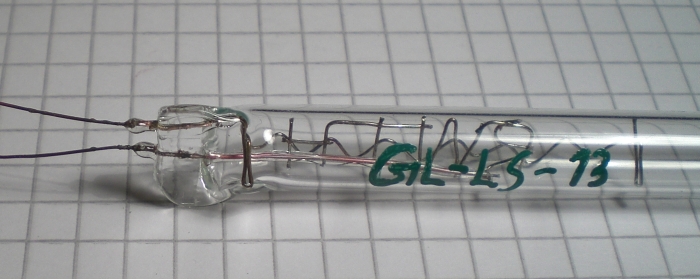

Die Konstruktion ist aber immer noch nicht ideal, wie die Tatsache beweist, dass sich Anode und Kathode beim Quetschsiegelprozess miteinander verhakt haben.
www.jb-electronics.de » Electronics » Nixie Tubes » Handcrafted Nixie tubes » GL-LS-13
The Glow Lamp Lab Sample 10, or in short GL-LS-13, is one out of several text glow lamps. She has been made out of 9mm soda lime tubing, Dumet wire for the pinch seal, and stainless steel wire for the electrodes; the atmosphere was intendet to be air at 15mbar:
Like her predecessor GL-LS-10 she displays the text "RWTH". Due to an internal non-fixable short between anode and cathode (the letter "H"), she sadly is dysfunctional.
The internal construction is of better quality as with the GL-LS-10, though:
This contruction is still not ideal as proven by the fact that anode and cathode entangled during the pinch-seal process.
